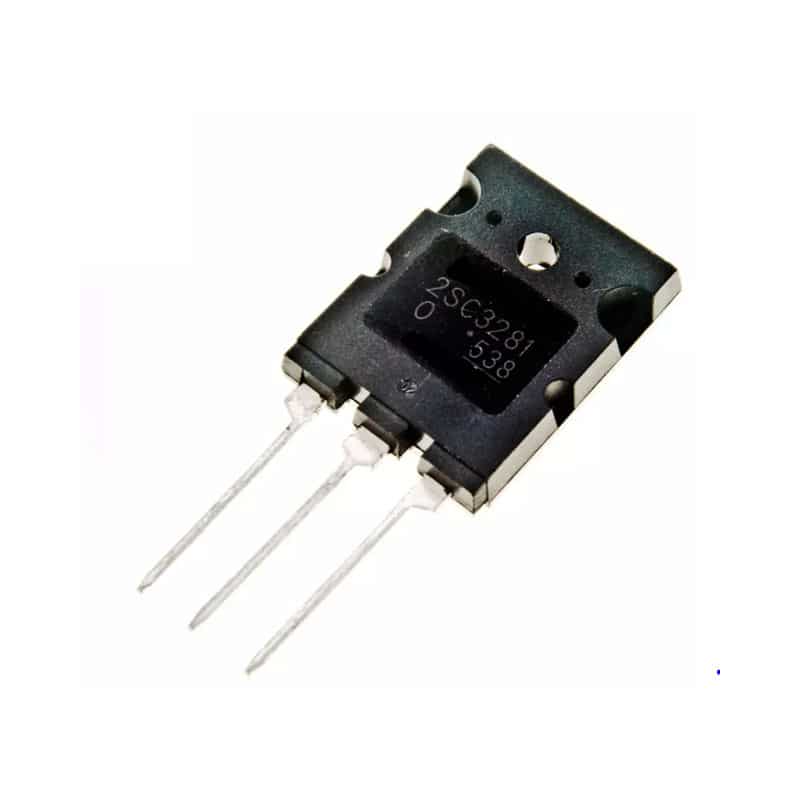

2SC3281 Power Transistor NPN (200V , 15A) 150W

Type Designator: 2SC3281
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Collector-Emitter Voltage |Vce|: 200 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 270 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Noise Figure, dB: –
Package: X104
