5 Axis CNC Breakout Board Interface Mach3 With USB Cable

Features:
Fully support control via parallel port, such as MACH,etc.
USB power supply and external power supply are seperate for safety.
External power supply input: -V. Equiped with anti-reverse connection function.
All input signal will be isolated by optical coupler for further connection with emergency stop,tool setter, limit, ect for PC safety.
One relay output port for control spindle on/off. The output interface. is P7.
One 0-0V analog voltage output port for control of inverter that has relative analog interface, and for control of spinle speed. The output interface is P.

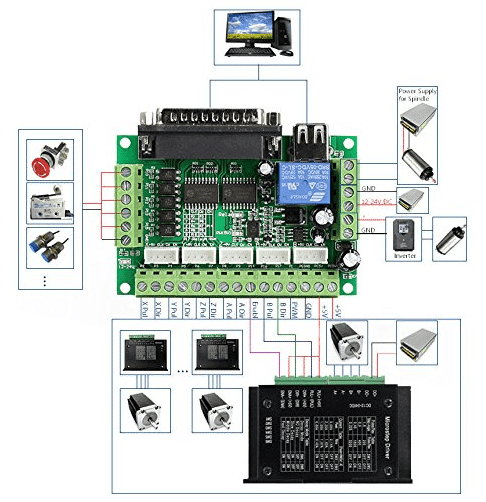

If all 7 interfaces are activated, drivers equipped with optical coupler can be controled and axis stepper motor can be controled.
As PWM output, P can control spindle speed regulator that is equipped with optical coupler.
Connection with V input drivers that has common cathode or anode is supported.

Specifications:
Dimension: Approx. 90 x 70 x 8mm
Cable length: Approx.0 cm
Color: Green
Weight: 20 g

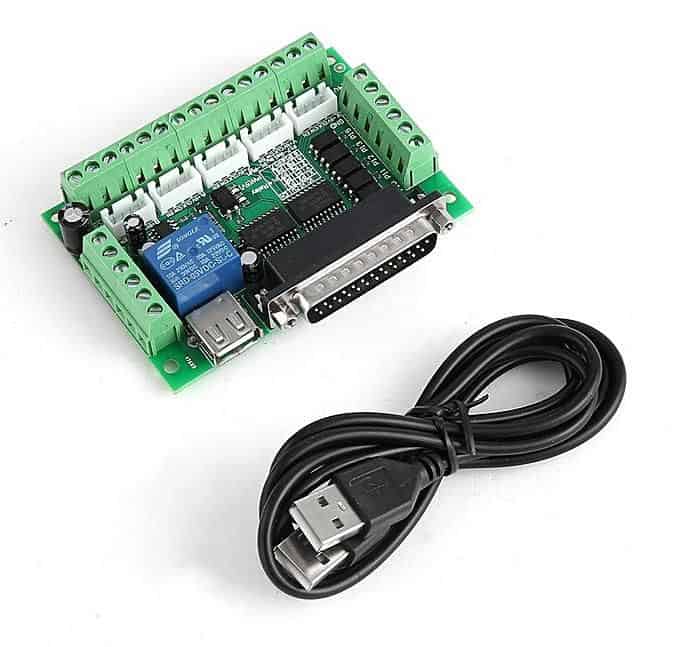

Package includes:
1x MACH Interface Board
1x USB Cable
