Acid Rechargeable Battery ( 12V / 4.5AH / 20HR) Westinghouse

Westinghouse WA1245

WA series is a general purpose battery with 5 years design life in float service .
It meets with IEC and JIS standards .
With up-dated AGM valve regulated technology and high purity raw materials, the WA series battery has reliable standby service life.
It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications.

Main Features:

• DEPENDABLE PERFORMANCE: Absorbent Glass Mat (AGM) technology for superior performance.
• MEETS SAFETY TESTS: Passed UL, IEC, JIS and BS standards.
• LONG FLOATING LIFE: Westinghouse WA Series of lead-acid batteries are guaranteed to last 5 to 10 years, so you’ll never be left without power
• WIDE TEMPERATURE RANGE: The WA Series of lead-acid rechargeable batteries can be used at extreme temperature from -4°F to 140°F (-20°C to +60°C) for incredible reliability
• MAINTENANCE-FREE & NON-SPILLABLE: All Westinghouse WA Series Lead-Acid batteries are maintenance-free and non-spillable.
• OVER 130 YEARS OF ELECTRIC INNOVATION: Westinghouse electric innovation is packed into every lead-acid rechargeable battery.

• Production Date (Pro) : 09-2022
• Expiry Date (Exp) : 09-2025
• Model: WA1245
• Cells Per Unit : 6
• Nominal Voltage: 12V
• Capacity: 4.5Ah@20hr-rate to 1.75V per cell @25 C
• Weight : Approx. 1.40 Kg(Tolerance 4%)
• Operating Temperature Range :
  Discharge: -20 ~60 C C o o
  Charge: 0 C~50 C o o
  Storage: -20 C~60 C
• Terminal Type: F1
• Float charging Voltage : 13.7 to 13.9 VDC/unit Average at 25 C
• Recommended Maximum Charging Current : 1.35 A

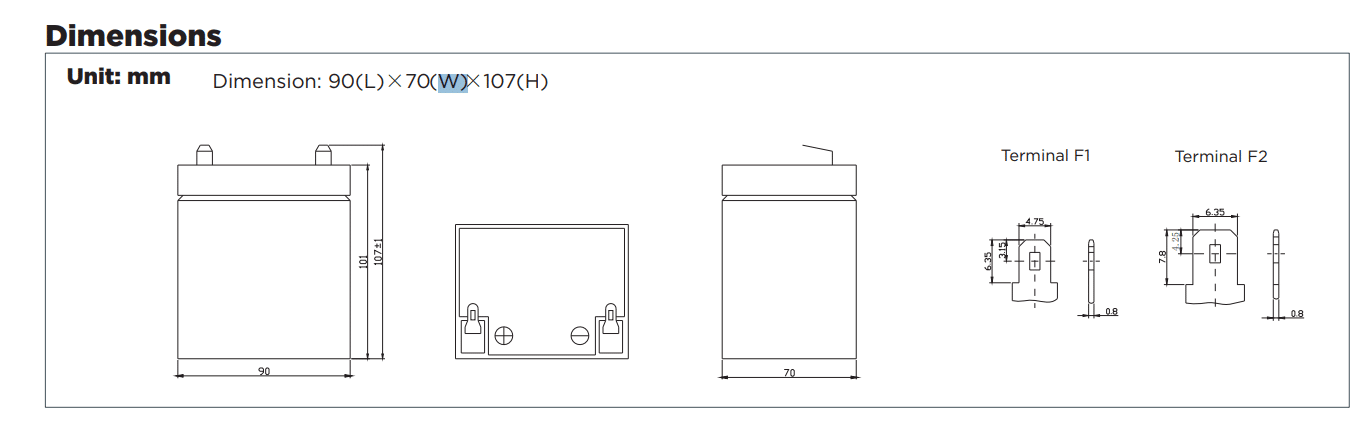

• Dimensions: 90(L) x 70(W) x  107(H)
