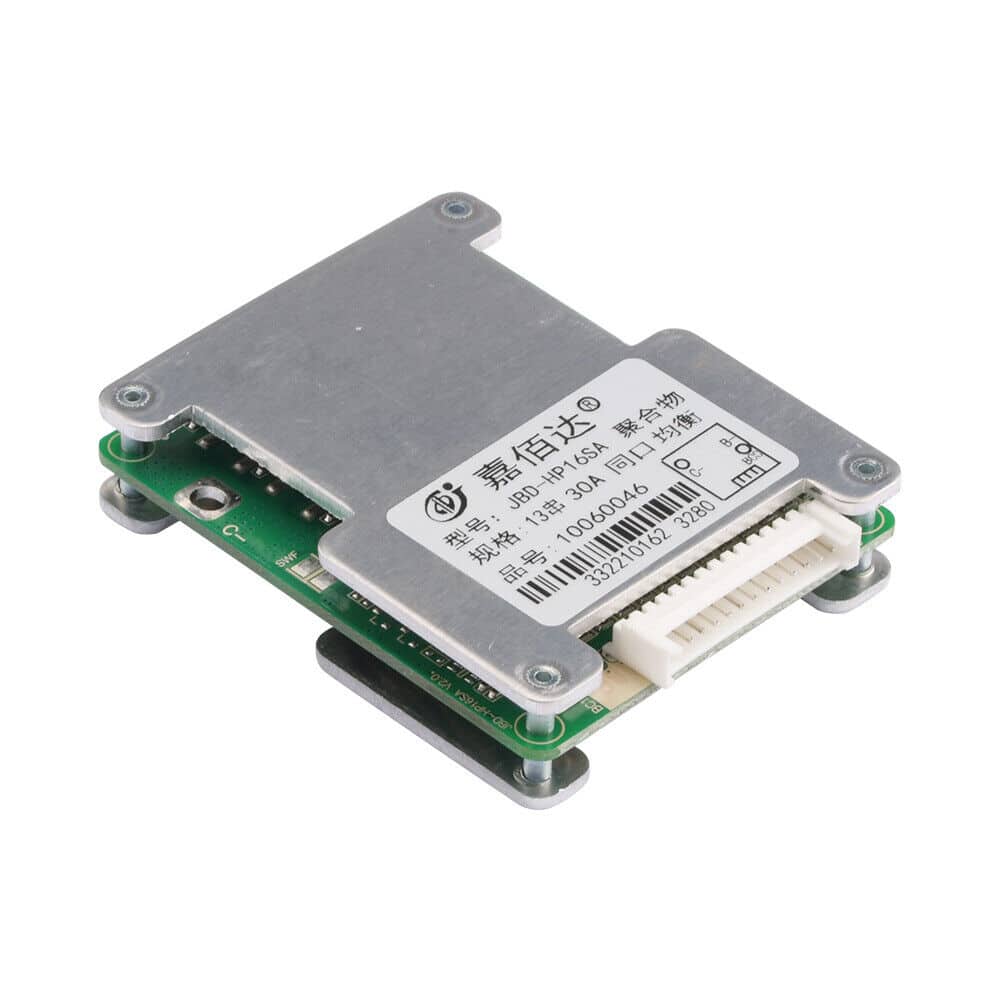

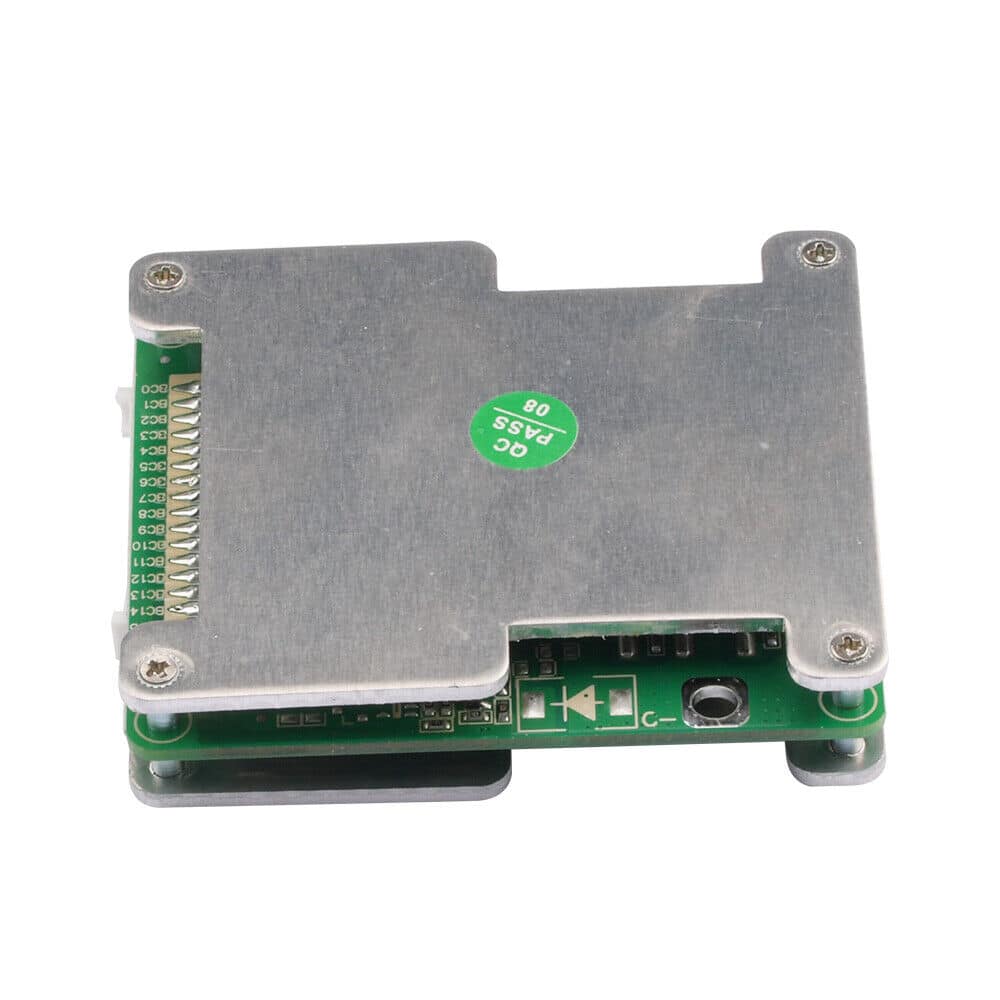

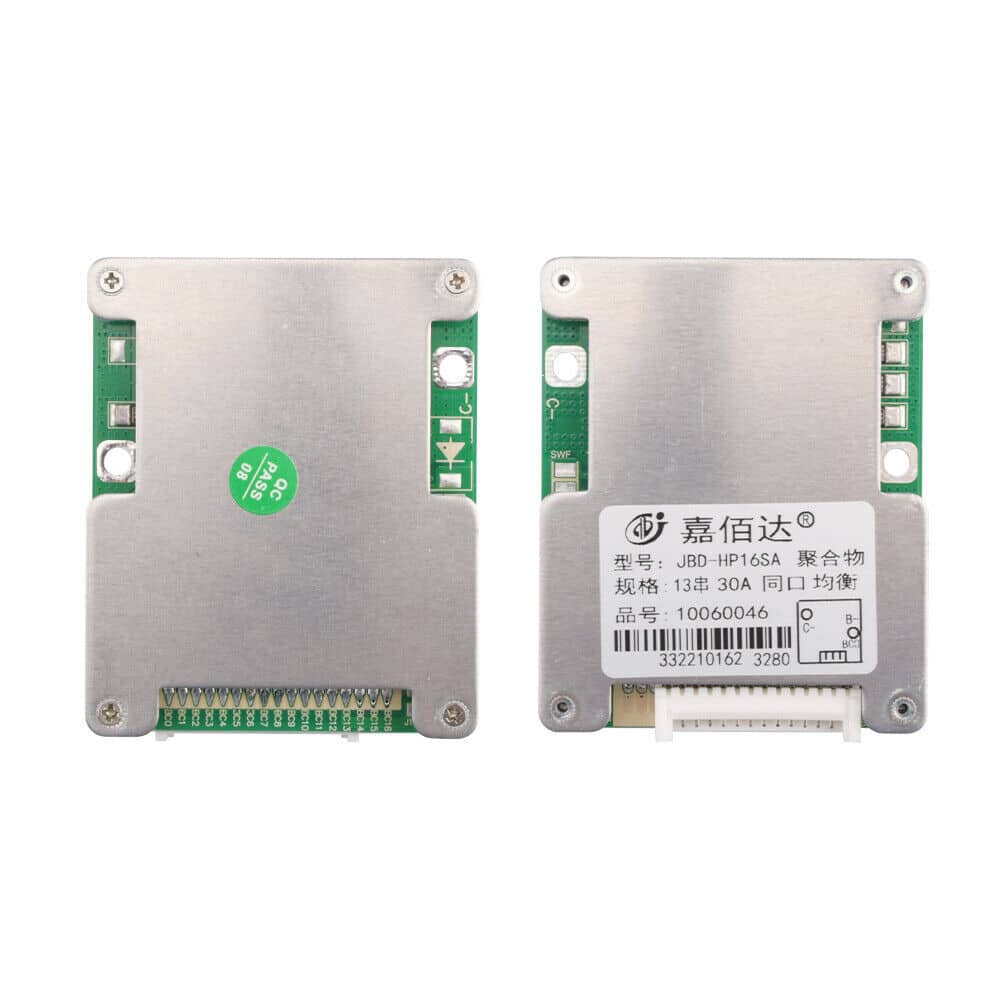

BMS 13S (48V – 30A )Lithium Battery Protection Module with Passive Balance

Specification:Model: 13 series 48V / 30A same port

Applicable voltage and power: 48V <1500W

Applicable battery type: 3.7V ternary battery lithium cobaltate lithium manganate battery

Function description: lithium battery overcharge protection; over discharge protection; over current protection; output short circuit protection.

Maximum working current: 30A MAX

Maximum continuous working current 20A MAX

Over-discharge protection voltage: 2.6V

Overcharge protection voltage: 4.25V

Charging current: 20AMAX

Balanced charging function: with this function

Balanced voltage 4.2V

Temperature protection: with this function

Discharge high temperature 75 “C; charge low temperature -7 ° C;

Application areas: electric vehicles; twist cars; electric bicycles; scooters; inverters, etc.

Dimensions: length 65mm * width 50mm * thickness 9.0mm

Unit weight: 60g

Package Included:

1pcs Lithium battery protection board
