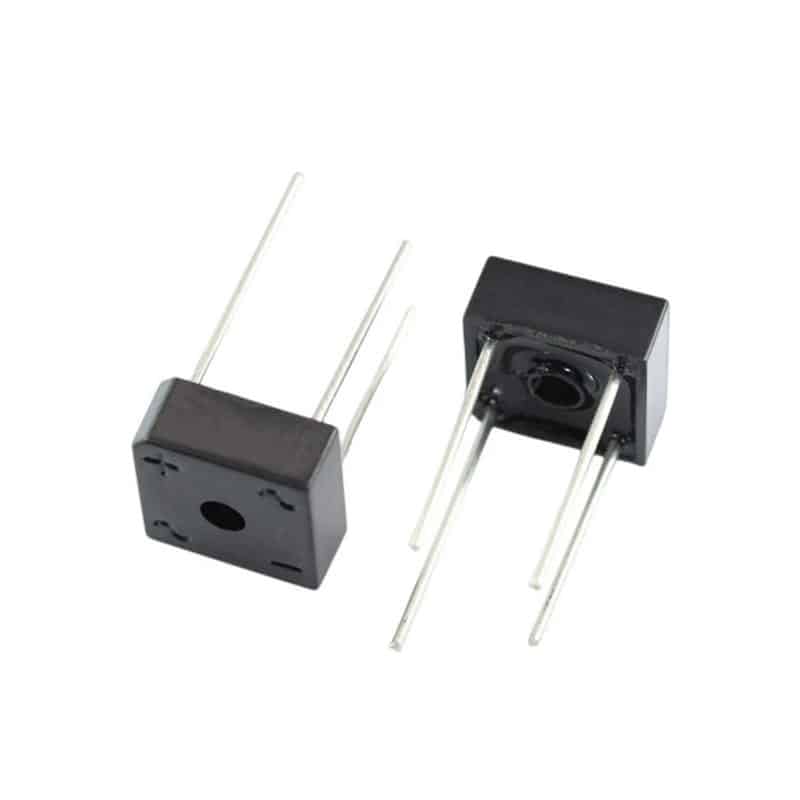

S04 SPECIFICATIONS
| Mfr Package Description | CASE R-10, 4 PIN |
| Status | Discontinued |
| Diode Type | BRIDGE RECTIFIER DIODE |
| Case Connection | ISOLATED |
| Configuration | BRIDGE, 4 ELEMENTS |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 1.1 V |
| JESD-30 Code | S-XUFM-W4 |
| Non-rep Pk Forward Current-Max | 30.0 A |
| Number of Elements | 4.0 |
| Number of Phases | 1.0 |
| Number of Terminals | 4 |
| Output Current-Max | 3.0 A |
| Package Body Material | UNSPECIFIED |
| Package Shape | SQUARE |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 400.0 V |
| Sub Category | Bridge Rectifier Diodes |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | UPPER |
