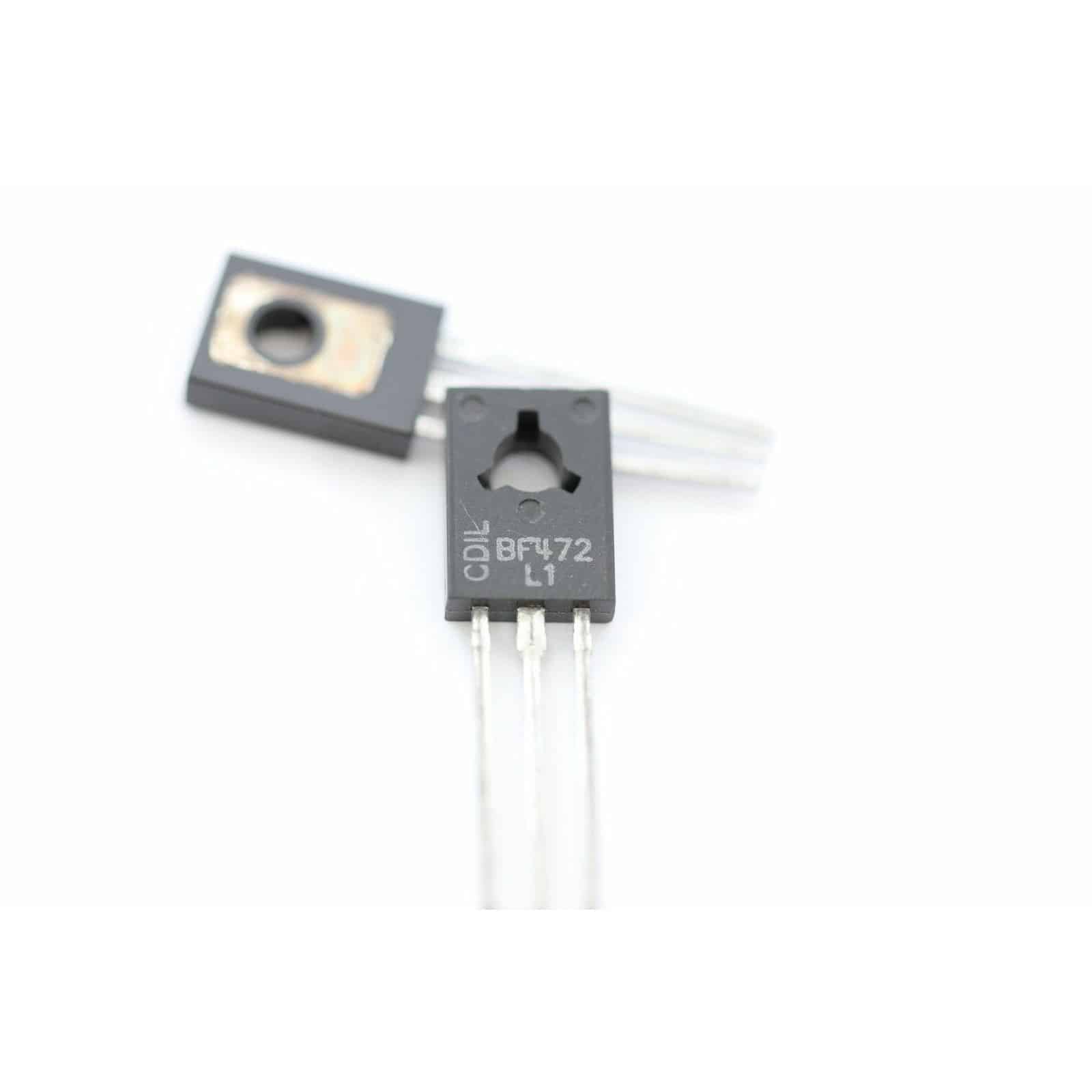

BF472 Power Transistor PNP (300V , 0.1A)

Features :

Type Designator: BF472
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 2 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 1.8 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Noise Figure, dB: –
Package: TO126
