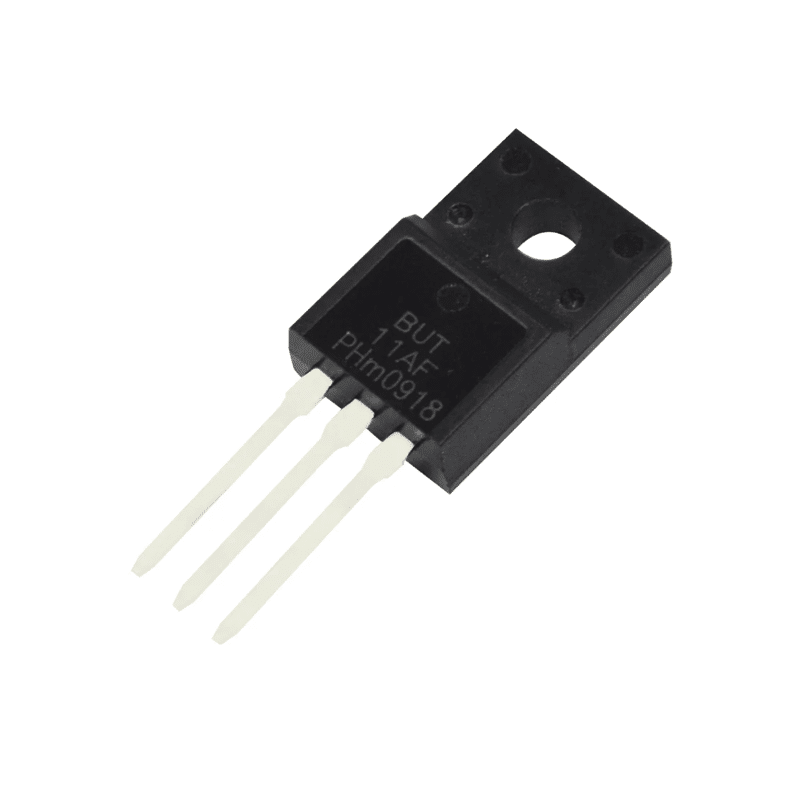

BUT11AF High Voltage Transistor NPN (450V , 5A)
,

BUT11AF High Voltage Transistor NPN (450V , 5A)

Compare

15,00 EGP

Compare

Description

BUT11AF is a High-voltage, high-speed glass-passivated NPN power transistor in a SOT186 envelope with an electrically insulated mounting base, intended for use in converters, inverters, switching regulators, motor control systems, etc.

For more information  Datasheet

Features:

  • High Voltage, High Speed
  • With TO-220Fa Package

Pinouts:

  1. Base
  2. Collector
  3. Emitter

Applications:

  1. Converters
  2. Inverters
  3. Switching Regulators
  4. Motor Control Systems

Specification:

Model BUT11AF
Type Power Transistor
Mounting Type Through Hole
Transistor Material Si
No. of Pin 03
Collector-Base voltage 1000 V
Collector-emitter voltage  450 V
Collector current (DC) 5A
Collector current peak value 10A
Total power dissipation (Ths < 25 °C) 20W
Package TO-220F
