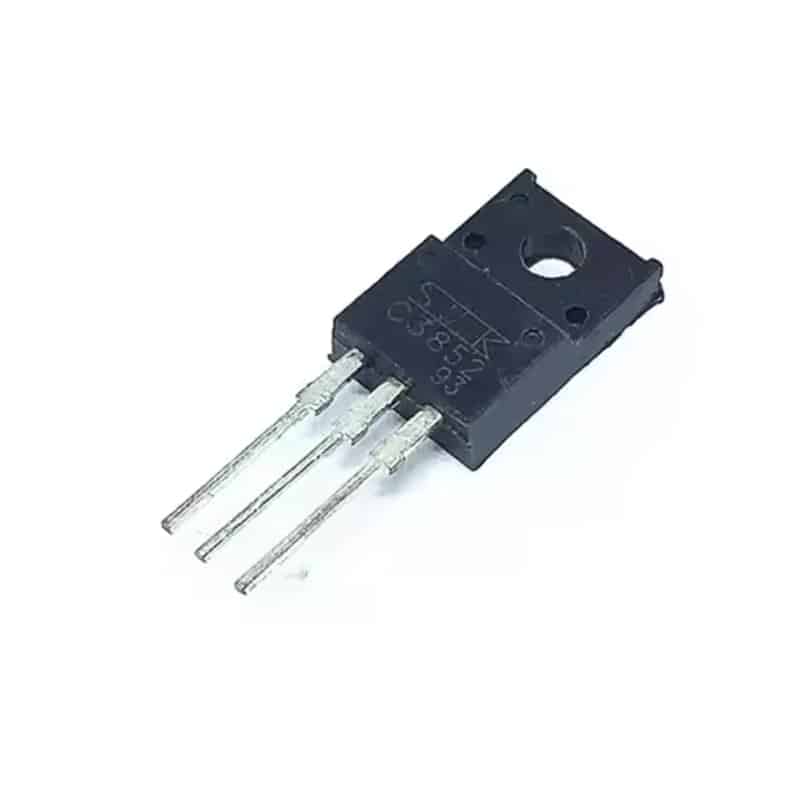

C3852 (2SC3852) Power Transistor NPN (80V , 3A)

Features :

Type Designator: 2SC3852
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: –
Package: TO218
