Charging Control Module For 12/24V Battery Charging Control (XH-M603 / HCW-M632)

Feature:

1. For 12‑24V Battery: Universal digital display battery charging control board, suitable for 12‑24V various storage batteries, extending battery life.

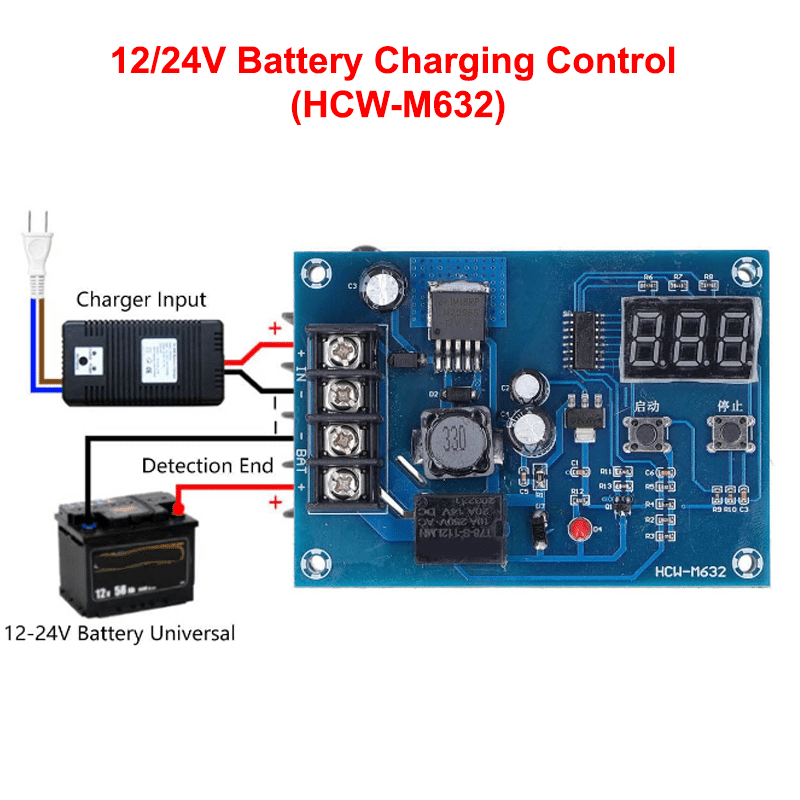

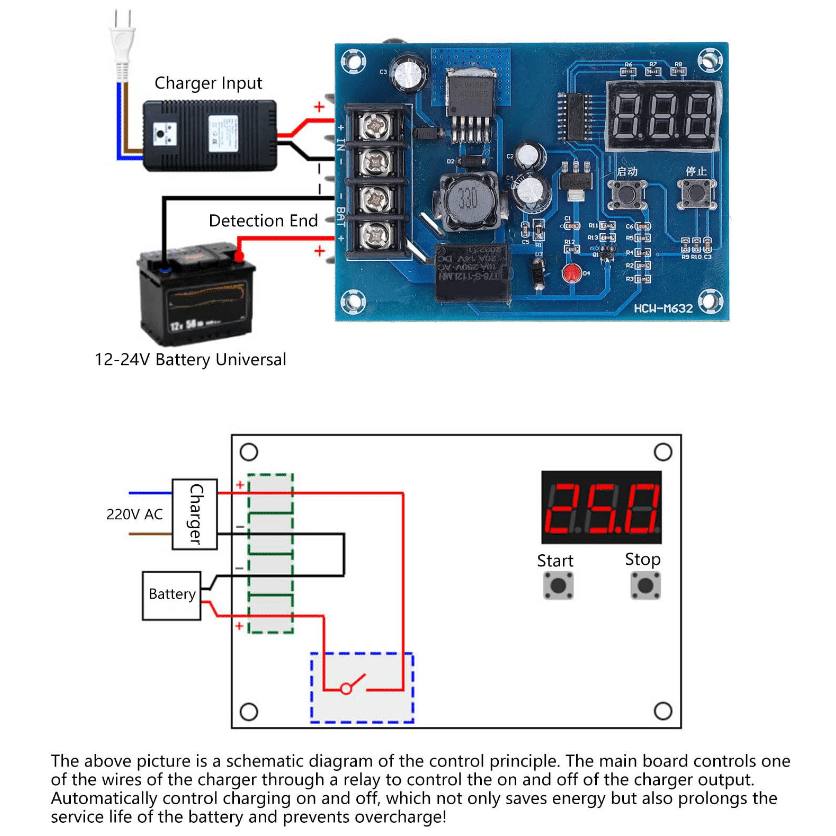

2. Control On and Off: The main board controls one of the wires of the charger through a relay to achieve the function of controlling the charger output on and off.
3. Multiple Functions: With full automatic power off, automatic charging when power is lost, and real time voltage monitoring functions.

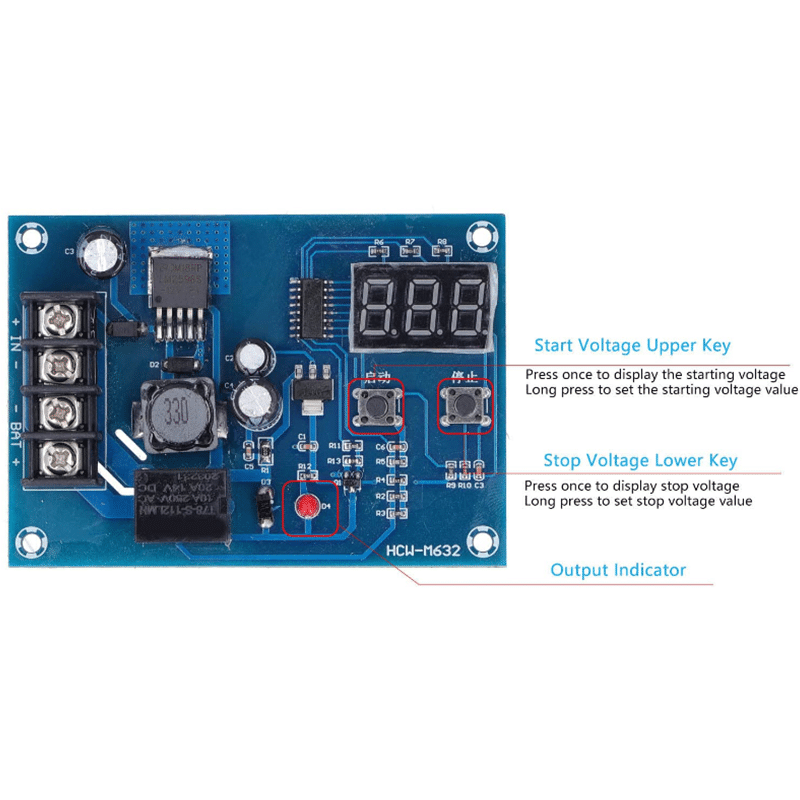

4. Memory Value Setting: Support memorizing the set value, automatically keep after setting, no need to set again.
5. High Performance: 1.6mm thick double layer circuit board, RF‑4 dense glass fiber material, has high mechanical strength and high dielectric performance.
6. Fine Production: The layout of the circuit board is beautiful, and the chip technology is adopted, and each plugin is professionally welded.Specification:

Package List:

1 x Charging Control ModuleNote:

This module must be connected to the battery to work normally, otherwise the screen will not display.
