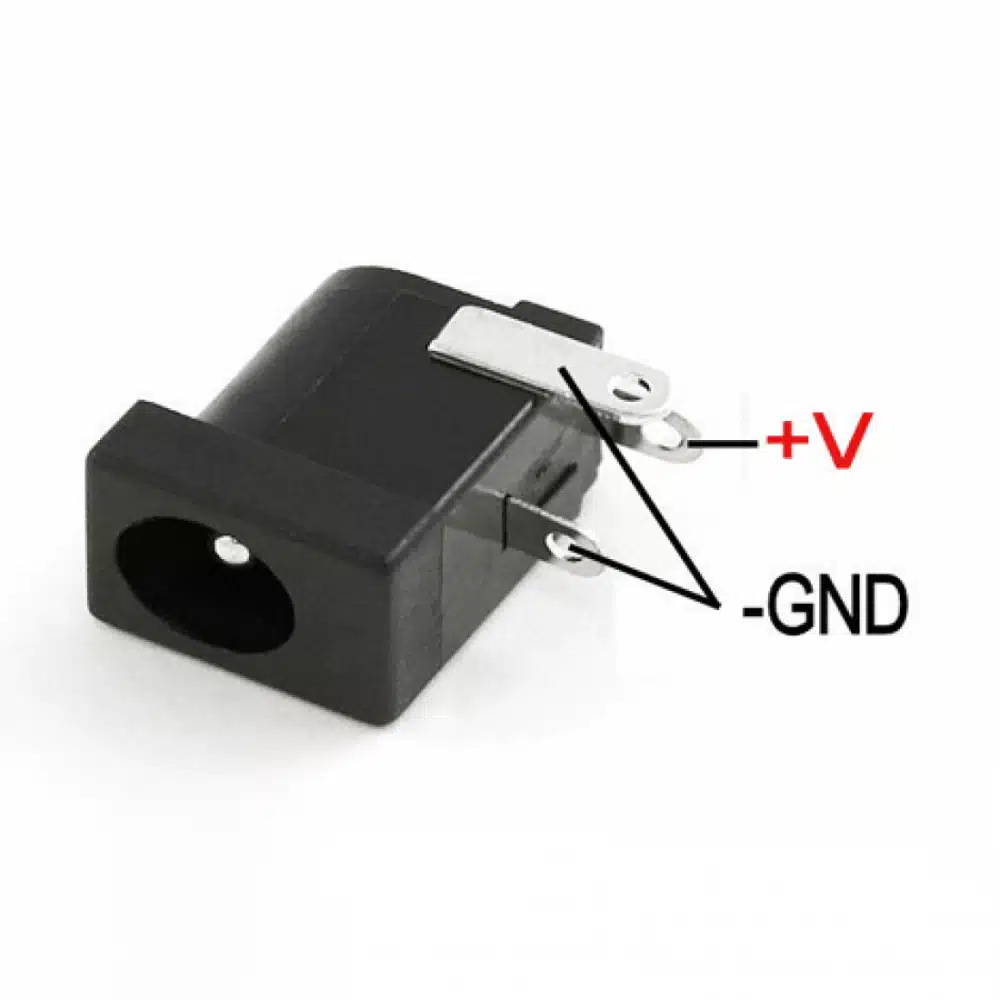

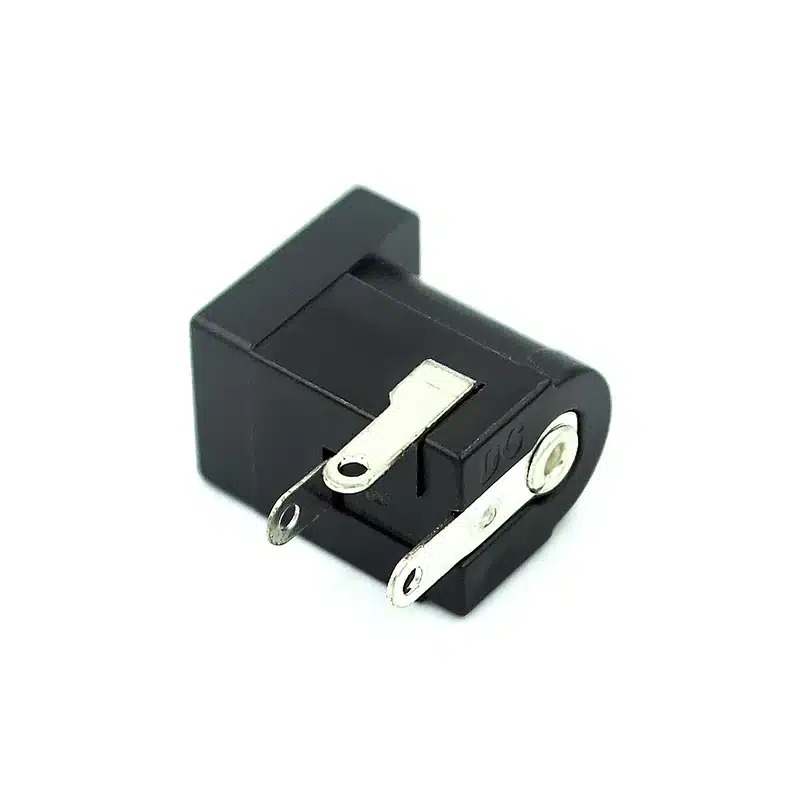

Female DC Power Jack supply socket 5.5X2.1mm

DC Power Jack Female Socket Connector 5.5×2.1mm

DC Power Jack Supply Socket 5.5×2.1mm is a good quality power connector compatible with all 5.5 male power jack from different sources. It is a 2.1×5.5mm mountable jack widely used in DIY hobby projects as well as in many robotics applications for DC supply voltage connection up to 30 V.

Feature/Specs:

• Rated load voltage: 30VDC
• Rated load Current: 1A
• Plug Type: 5.5 x 2.1 mm
• No. of Pin: 3
• Operating Temperature: -30 ~ +70℃
• Contact resistance: ≤0.03
• Insulation Resistance: ≥100MΩ
• Center Pole Diameter: 2.1mm
• Compatible with: 5.5 mm jack
• Withstand voltage: AC 500V (50Hz)/min.
• Actuating force: 3N – 20N.
