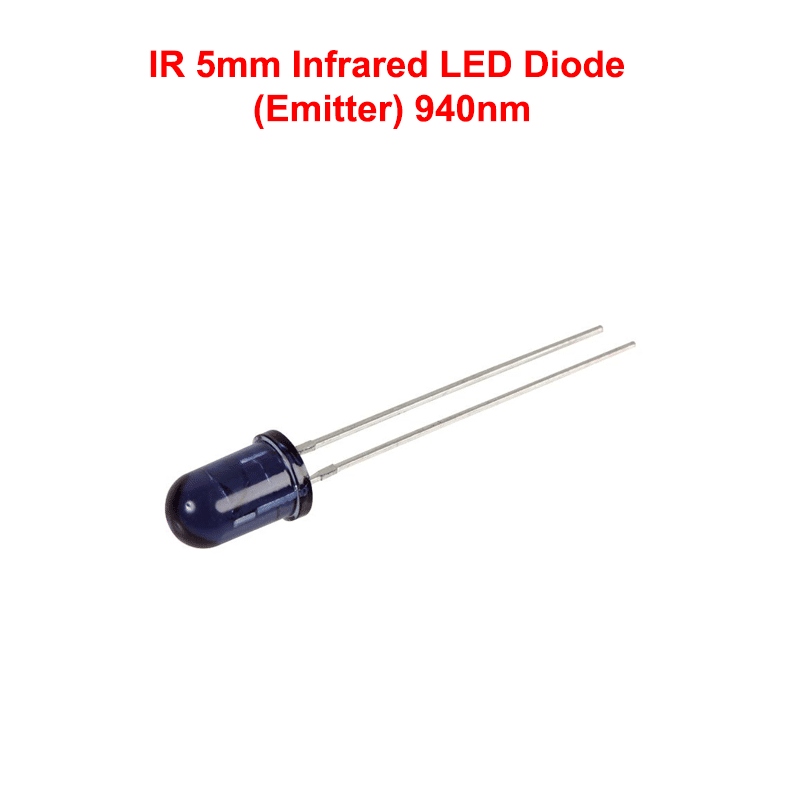

IR 5mm Infrared LED Diode (Emitter) 940nm

Specification

• Continuous forward current: 100mA
• Peak forward current: 1A
• Peak wavelength: 940nm
• Forward voltage: 1.2V to 1.8V
• Power dissipation: 150mW
• Operating and storage temperature: -40℃ to +80℃

Features

• High reliability
• High radiant intensity
• Peak wavelength λp=940nm
• 2.54mm Lead spacing
• Low forward voltage

Applications

• Free air transmission system
• Infrared remote control units with high power requirement
• Smoke detector
• Infrared applied system
