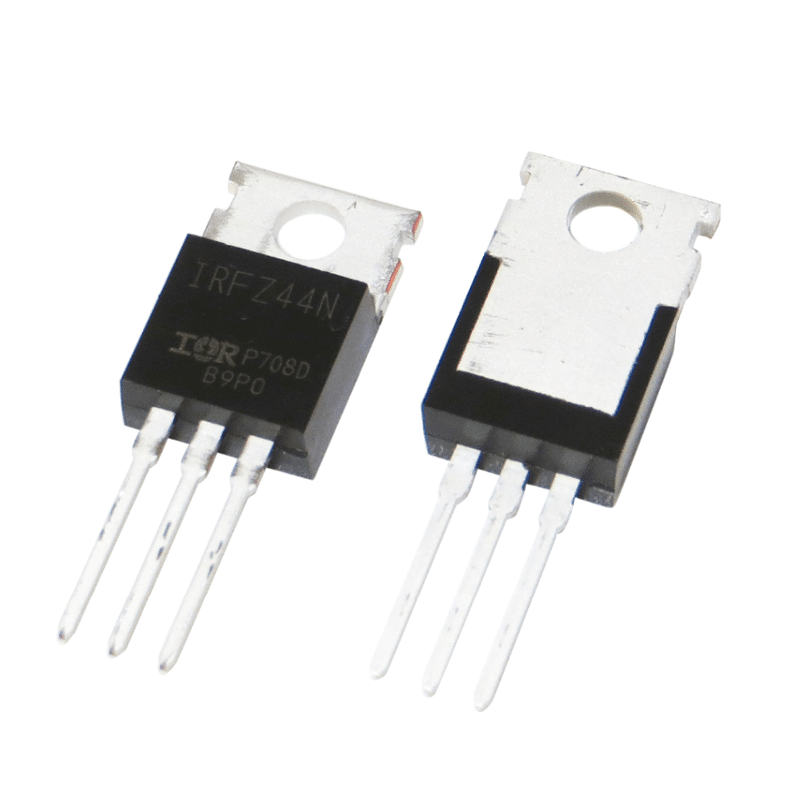

IRFZ44N MOSFET. Datasheet pdf. Equivalent

Type Designator: IRFZ44N

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 94 W

Maximum Drain-Source Voltage |Vds|: 55 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V

Maximum Drain Current |Id|: 49 A

Maximum Junction Temperature (Tj): 175 °C

Total Gate Charge (Qg): 63(max) nC

Rise Time (tr): 60 nS

Drain-Source Capacitance (Cd): 360 pF

Maximum Drain-Source On-State Resistance (Rds): 0.0175 Ohm

Package: TO220AB
