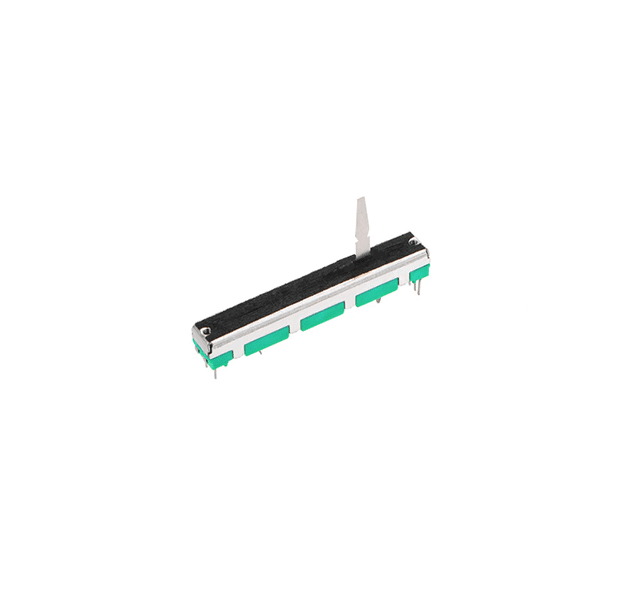

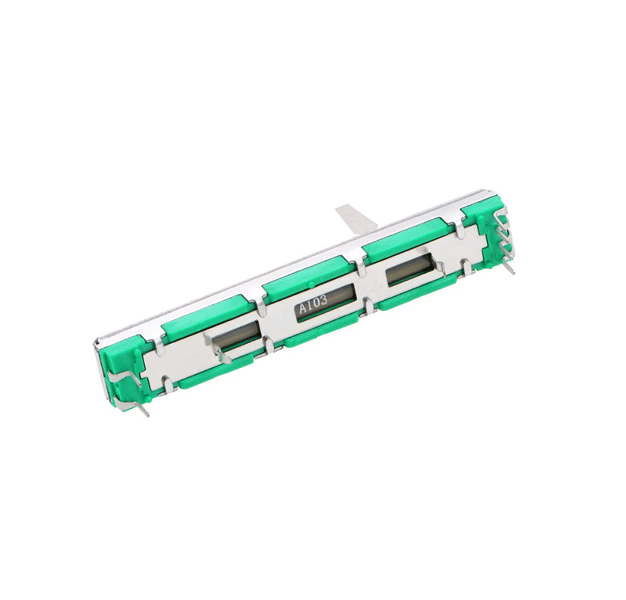

Linear Slide Potentiometer 10KOhm (45mm) A103

This carbon track logarithmic stereo slider potentiometer is an original way to vary the audio volume over a 60mm stroke.
This slide-type potentiometer will lend itself to the design of amplifiers, audiobox, DIY audio dock.
The applications range from car audio to the design of mixing tables and drum machines.

Specifications:

• Slide A10K
• Resistance: 10kΩ
• Potentiometer travel: 30mm
• Handle: 15mm height
• Double cage
• Track Type: Logarithmic Stereo
• Metal body
• Overall Length: 45mm
• Rated Power: 0.25 (W)
• Resistance Tolerance: ±20 (%)
• Sliding Noise: Less Than 68m (V)
• Resolution: 100 (%)
• Distance between centers: 41mm
• RoHS Certified
