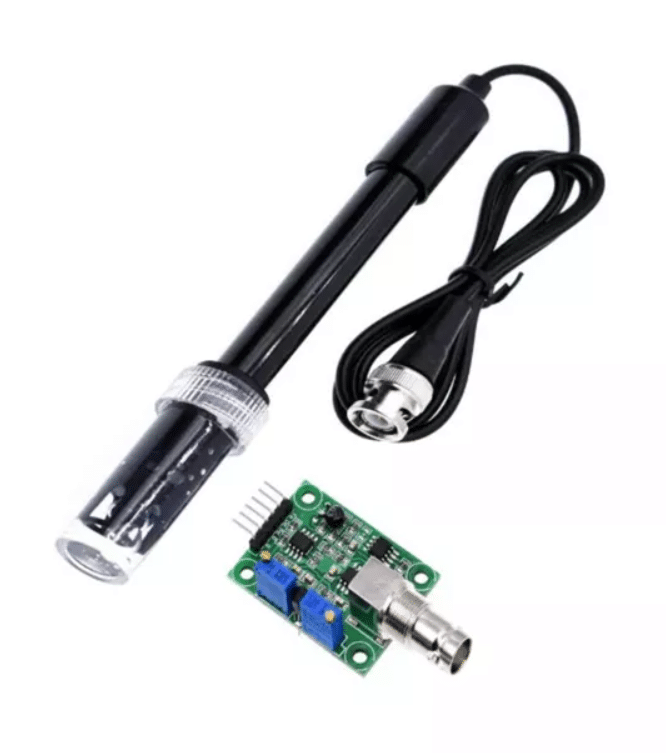

Liquid PH Sensor + BNC PH Electrode Probe Module (PH0-14)

PH0-14 Value Detect Sensor Module + PH Electrode Probe BNC For Arduino, Suitable for wide range of application: Aquariums, Hydroponics, Laboratory etc.

Package Includes:

1pcs Liquid PH0-14 Value Detect Test Sensor Module

1pcs PH Electrode Probe Hydroponic Sensor BNC Interface

Features of PH0-14 Value Detect Sensor Module:

Working current: 5-10mA

Heating voltage: 5 ± 0.2V (AC DC)

Detectable concentration range: PH0-14

Detection Temperature range: 0-80 ℃

Response time:≤5S

Settling Time:≤60S

Component Power:≤0.5W

Working temperature:-10-50 ℃ (nominal temperature 20 ℃)

Humidity: 95% RH (nominal humidity 65% RH)

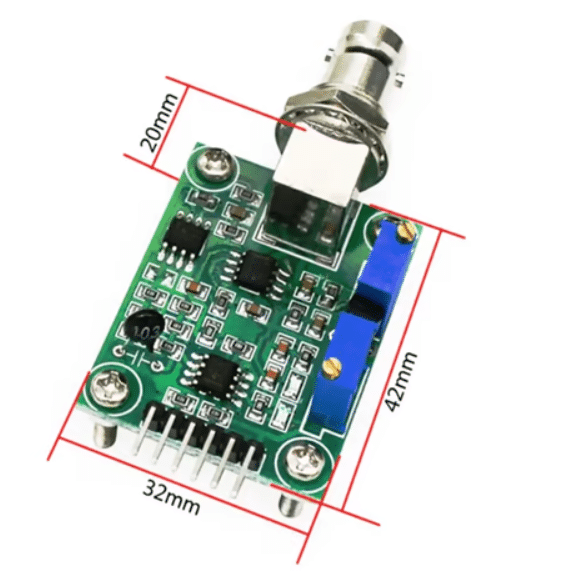

Module Size: 42mm × 32mm × 20mm

Output: Analog voltage signal output

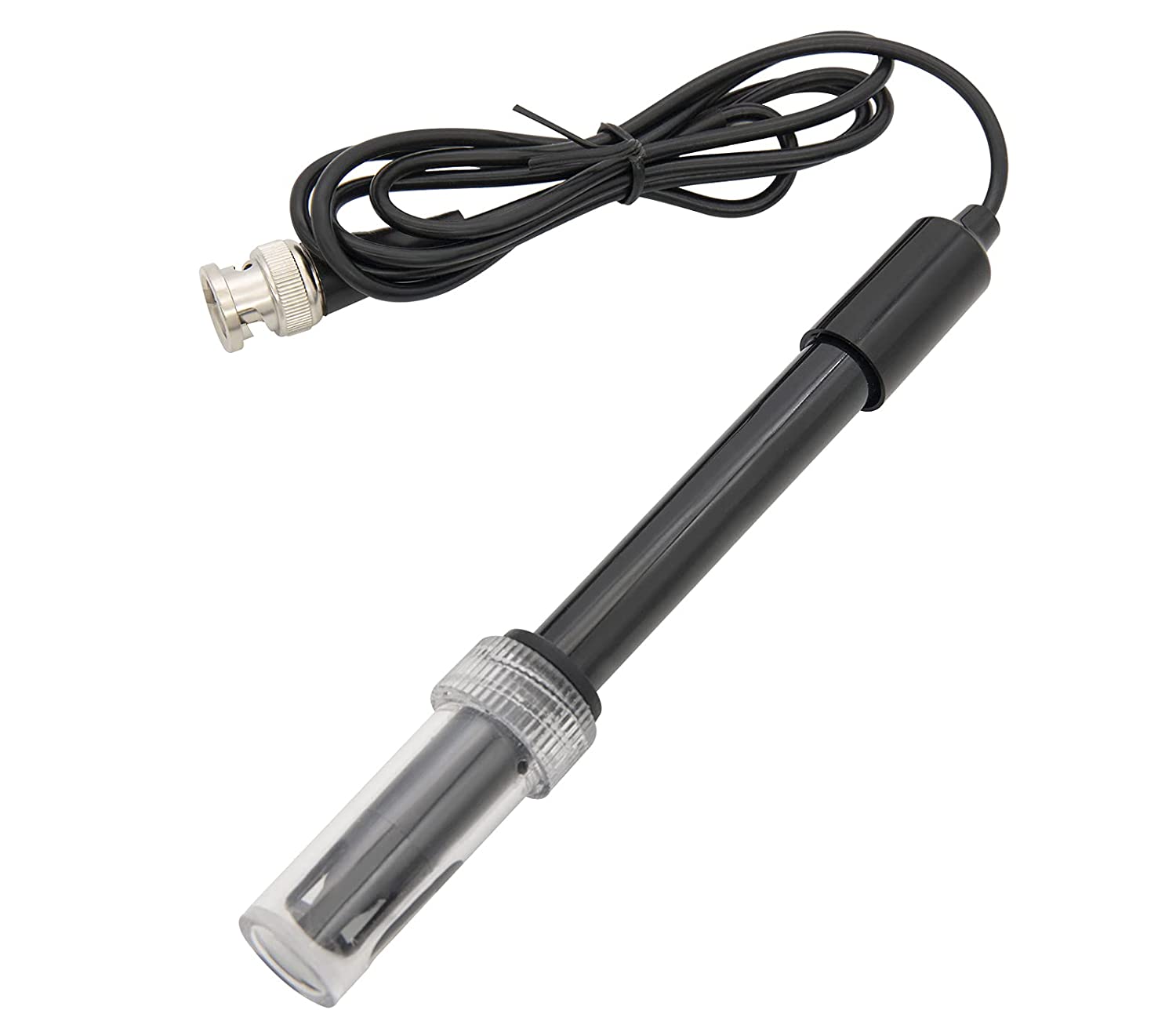

Features of PH Electrode Probe BNC For Arduino:

PH range: 0-14 PH

Alkali Error: ≤15 mv

Response Time: ≦1min

Zero-point: 7 ± 0.25PH

Temperature range: 0-80℃

Internal Resistance: ≦250MΩ

Operating Temperature: 0-60℃

Theoretical Percentage Slope: ≧98%

Terminal Blocks: BNC plug

Value Detect Sensor Module has 4pcs M3 Mounting Holes; and the PH electrode has a single cylinder that allows direct connection to the input terminal of a PH meter, controller, or any PH device which has a BNC input terminal.

BNC Connector suitable for most PH meter and controller.

The PH electrode probe is accurate and reliable that can gives almost instantaneous readings.
