NICLA Sense ME – Original Made In ITALY – ABX00050

This Board is 100% original & Designed & Assembled in ITALY

NICLA Sense ME – Code: ABX00050

Bring smart sensing solutions to the edge, with the high-performance, low-power board that packs state-of-the-art Bosch Sensortec technology into our smallest form factor yet.

Overview

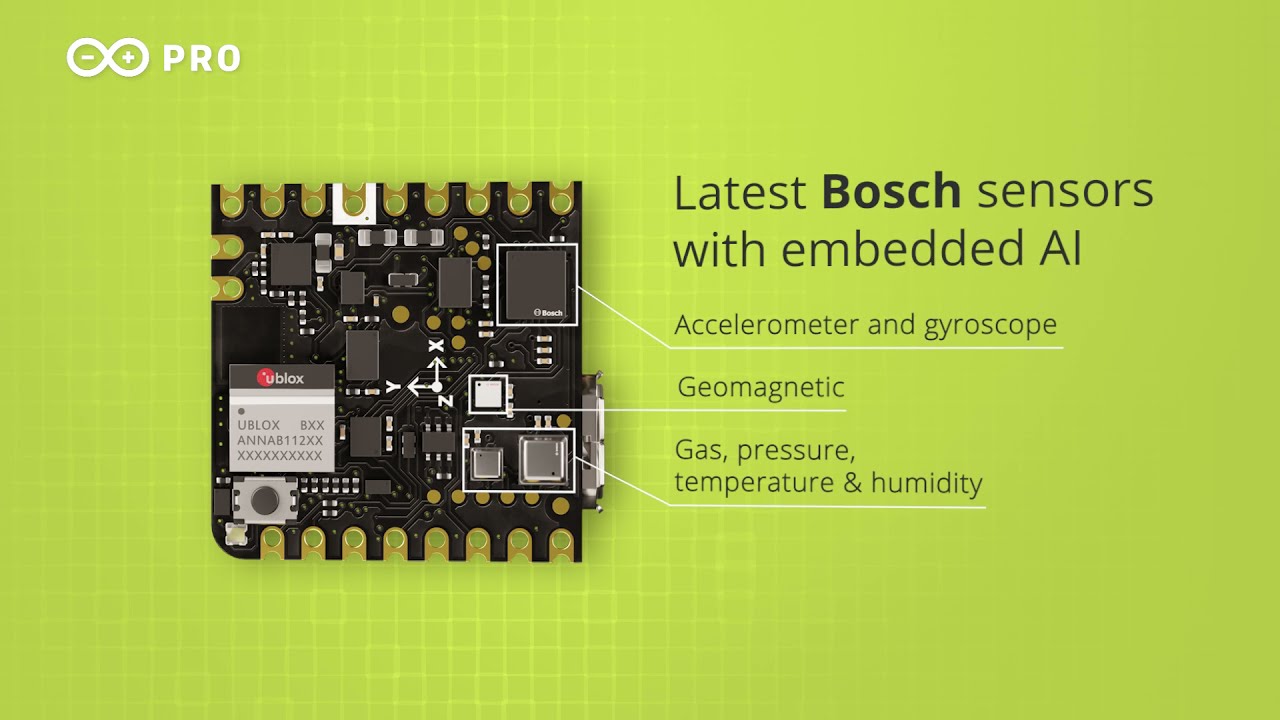

The Nicla Sense ME is a tiny, low-power tool that sets a new standard for intelligent sensing solutions. With the simplicity of integration and scalability of the Arduino ecosystem, the board combines four state-of-the-art sensors from Bosch Sensortec:

• BHI260AP motion sensor system with integrated AI
• BMM150 magnetometer
• BMP390 pressure sensor
• BME688 4-in-1 gas sensor with AI and integrated high-linearity, as well as high-accuracy pressure, humidity and temperature sensors.

Designed to easily analyze motion and the surrounding environment – hence the “M” and “E” in the name – it measures rotation, acceleration, pressure, humidity, temperature, air quality and CO2 levels by introducing completely new Bosch Sensortec sensors on the market.

Its tiny size and robust design make it suitable for projects that need to combine sensor fusion and AI capabilities on the edge, thanks to a strong computational power and low-consumption combination that can even lead to standalone applications when battery operated.

Part of Arduino Pro’s new Nicla family of modular, intelligent products that are easy to use, cost effective, versatile and accessible, the Sense ME has a new, tiny form factor that is also compatible with the Arduino MKR and Portenta ranges.

Tech specs

MICROCONTROLLER:
64 MHz Arm® Cortex M4 (nRF52832)

SENSORS:
BHI260AP – Self-learning AI smart sensor with integrated accelerometer and gyroscope, BMP390 – Digital pressure sensor, BMM150 – Geomagnetic sensor, BME688 – Digital low power gas, pressure, temperature & humidity sensor with AI

I/O:
Castellated pins with the following features: 1x I2C bus (with ext. ESLOV connector), 1x serial port, 1x SPI, 2x ADC , programmable I/O voltage from 1.8-3.3V

CONNECTIVITY:
Bluetooth® 4.2

POWER:
Micro USB (USB-B), Pin Header, 3.7V Li-po battery with Integrated battery charger

MEMORY:
512KB Flash / 64KB RAM, 2MB SPI Flash for storage, 2MB QSPI dedicated for BHI260AP

INTERFACE:
USB interface with debug functionality

DIMENSIONS:
22,86 mm x 22,86 mm

WEIGHT:
2 g
