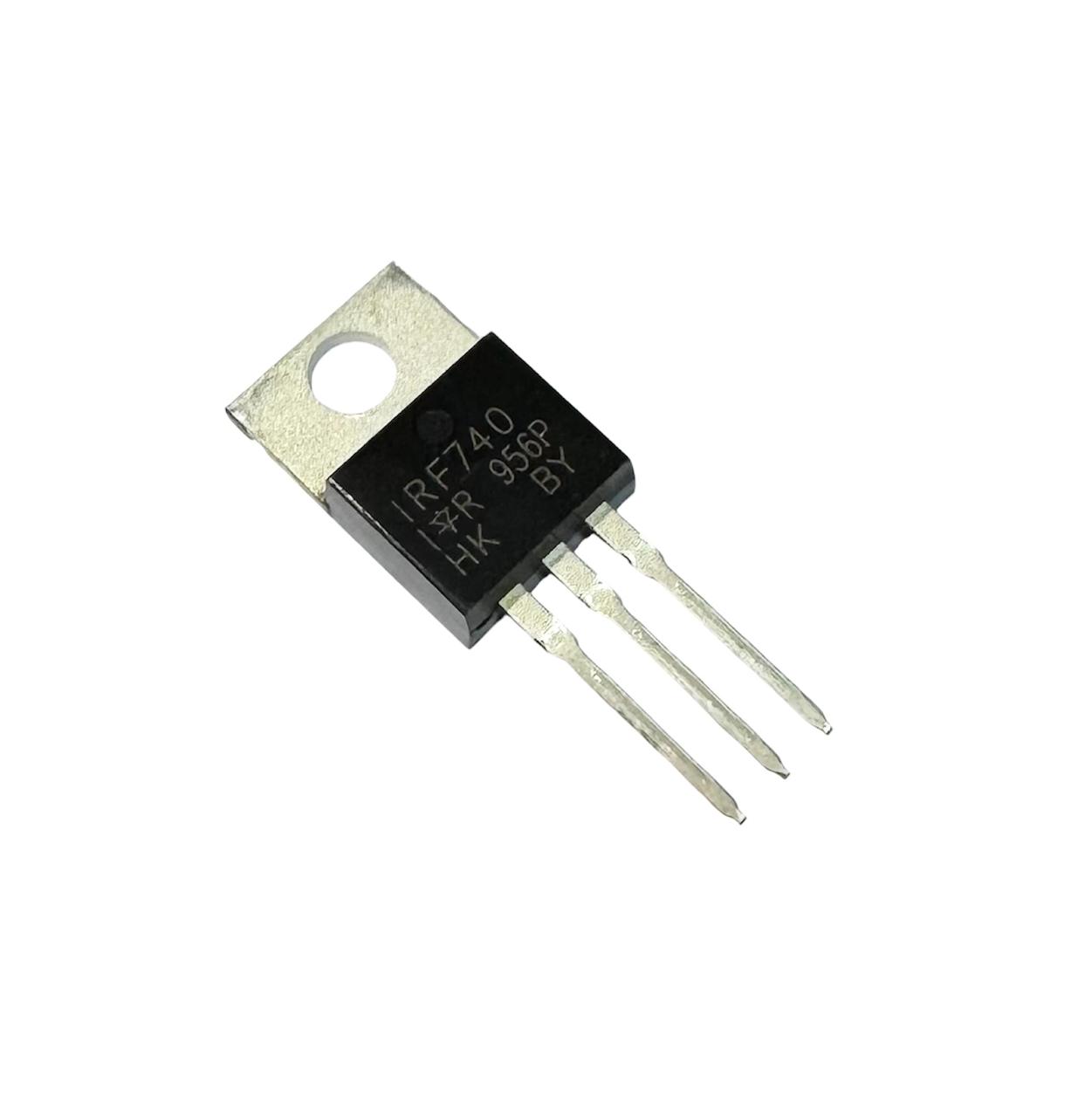

The IRF740 is an N-Channel Power MOSFET which can switch loads upto 400V.
Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | Source | Current flows out through Source (maximum 10A) |
| 2 | Gate | Controls the biasing of the MOSFET (Threshold voltage 10V) |
| 3 | Drain | Current flows in through Drain |
Features
- N-Channel Power MOSFET
- Continuous Drain Current (ID): 10A
- Gate threshold voltage (VGS-th) is 10V (limit = ±20V)
- Drain to Source Breakdown Voltage: 400V
- Drain Source Resistance (RDS) is 0.55 Ohms
- Rise time and fall time is 27nS and 24nS
- Available in To-220 package
Note: Complete technical details can be found at the IRF740 datasheet linked at the bottom of the page
Applications
- Switching high power devices
- Inverter Circuits
- DC-DC Converters
- Control speed of motors
- LED dimmers or flashers
- High Speed switching applications
