Panel Mount Speaker Terminal Socket 4 Way (High Quality)

Features:

1. 4 pins, 4 positions, spring load design, push type speaker terminal board.
2. This spring loaded terminals ensure a solid connection and make wire hookups a Put.
3. Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.

Specification:

1.Product: 4 Terminal Speaker Connector Plate
2.Type:Push Release Type
3.Material: Plastic, Metal
4.RoHS: Yes
5.Rated Load: AC 50V 3A
6.Wire Range: AWG 24-16
7.Temperature: -40 to 55 C
8.Contact Resistance: <= 0.03 Ohm
9.Insulation Resistance: >= 100M Ohm
10.Withstand Voltage: AC 500V 1 Minute
11.Actuating Force: 1 Kgf
12.Color Polarity Coding: Red/Black
13.Life: >10000 Times
14.Position:4 Way (1 row)
15.Mounting Hole Center Distance: 60mm/ 2.4inch
16.Pin Quantity:4 pin

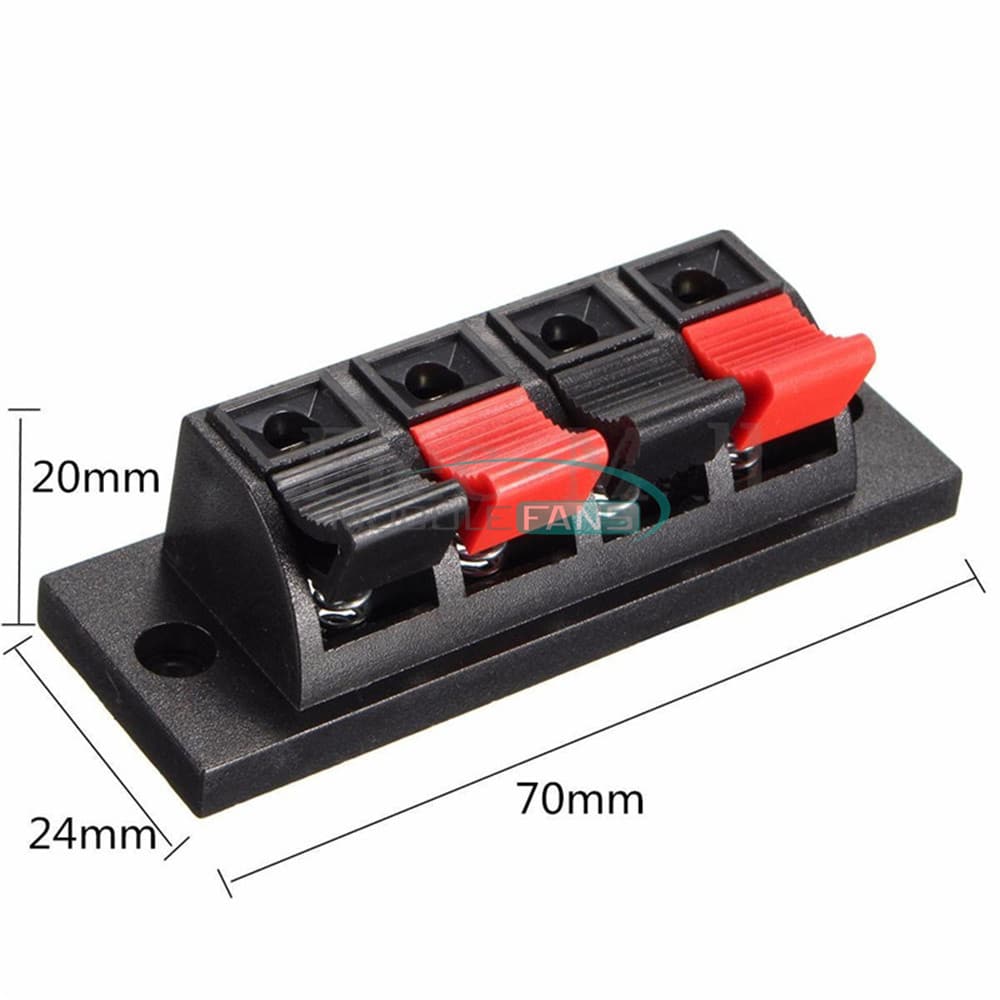

17.Size:70*24*20mmPackage included:

1PCS x 4-Way Speaker Terminal Strip
