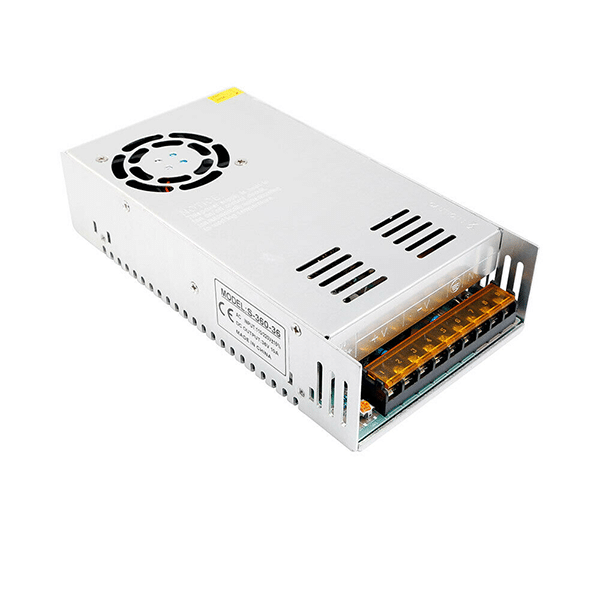

(S-360-36) high quality power supply 36v 10A 360W Switching power supply for LED Strip light ,CNC 3D Print , Led billboard
Specification:
Universal AC input /full range
Protections:Short circuit /Over load
Forced air cooling by built -in DC fan
100% FuLL load burn-in test
Low cost ,high reliability
Input voltage: 90~132VAC/176~264VAC selected by switch 47~63Hz, 248~370VDC
AC inrush current : Cold stat ,15A/115VAC 30A/230vac
Dc adjustment range : ±10%
Over load protection :105% ~150%fold back current limiting ,auto-recovery
Over voltage protection :115%~135% fold back current limitting, auto-recovery
Setup,rise,hold uo time:200ms ,80ms,20ms at full load and 230vac
Withstand voltage:i/p-o/p:1.5KVAC,I/P-FG:0.5kVAC 1minute
Working tempure:-10°C~+60°C2, 0%~90%RH(5~7.5V,0-45°C)
Safety standars:Design refer to UI1012
EMC standards:Design refer to FCC part 15
Connection:7p /9.5mm pitch terminal block
Packing :1.2kg; 18pcs/21.0kg/1.2CUFT
| Model Number | Output | Tol | R&N | Effi | pp |
| S-360-36 | 36V,O~10A | ±2% | 150mV | 78% | 135 |
