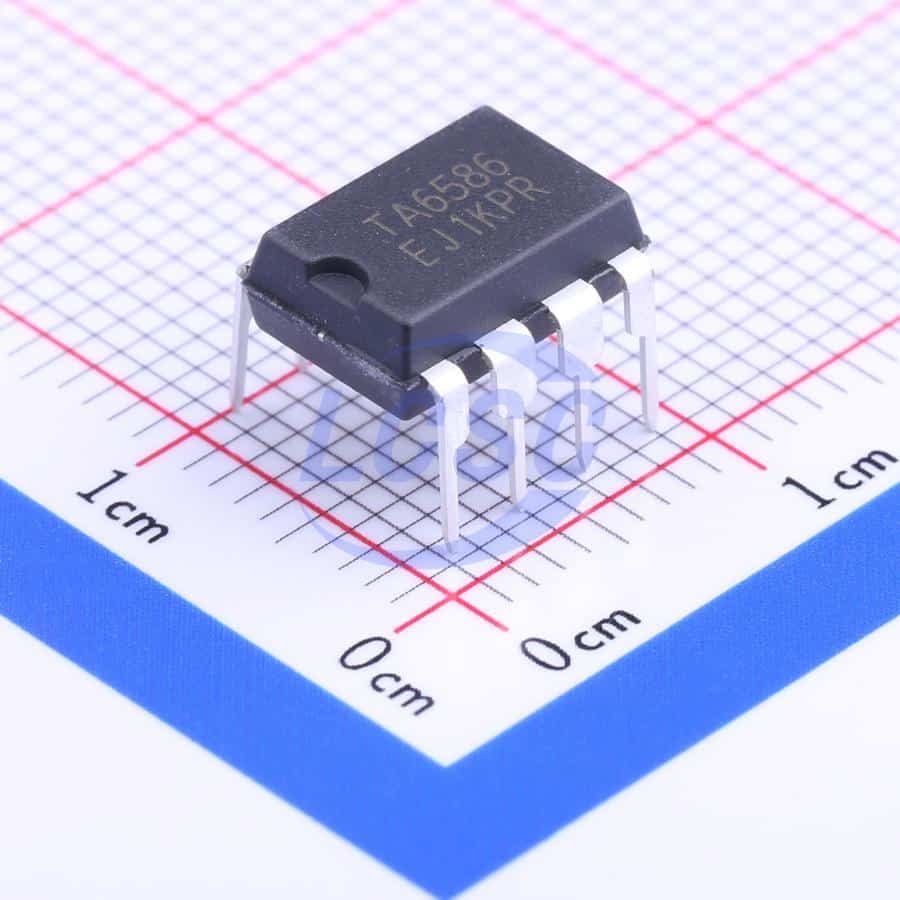

TA6586 is a monolithic IC designed for driving bi-directional DC motor.
It has two pins of logic inputs for controlling the direction, forward and backward.
The circuit feature good anti-interference performance, small standby current and low output saturation pressure drop.
It has a built-in clamp diode to reverse the impact of the release of inductive load current, making it in the drive relays, DC motors,
stepper motors or control the use of switching power safe and reliable.
TA6586 is suitable for toy vehicles, remote-controlled aircraft motor drive, automatic valve motor, electromagnetic lock drive, precision instruments and other circuits.

• Features:

  • Low quiescent current
  • Wide supply voltage range: 3V-14V
  • 5A continuous current output capability per channel
  • Lower saturation voltage
  • TTL / CMOS output level compatible, and can be directly connected to the CPU
  • Output built-in clamp diodes for inductive load
  • Integrated control and drive into a monolithic IC
  • With pin high-voltage protection function
  • Operating temperature: 0 ℃ -80 ℃
  • DataSheet
