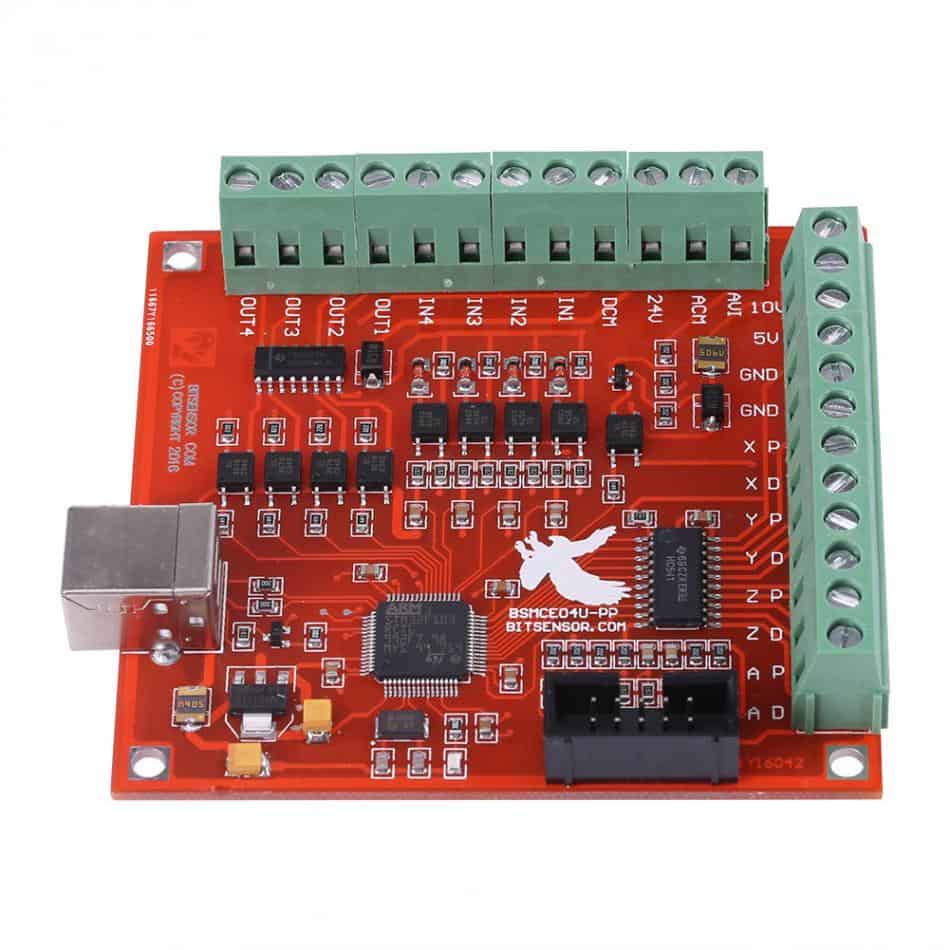

The versatile USB interface Mach3 motion control card supports up to 4-Axis linkage control. It can provides upto 12 digital signal input and also supports spindle control. Support hand wheel interface.
Technical specifications and features:
Supports up to 4- axis linkage control. The fourth axis can be set as driven axis
Output pulse 100K , using the smallest error interpolation algorithm, high precision machining
USB interface for any PC compatible computer with USB interface for netbooks, laptops, desktops, and tablets
Compatible in windows 7/8/10.
Drive-free design, to better compatible with a variety of hardware and software environment
Support auto-zero
The driven shaft automatically adjusts to zero
Support automatic knife
Support emergency stop input
Support limit switch access
Support spindle control (PWM mode and relay mode)
Provides 4 channels with optocoupler isolation digital signal input
Provides up to 12 digital signal input
provides 4 channels with optocoupler isolation relay output
Support hand wheel interface
Anti-jamming design, the import of industrial components assembly, high reliability
*** Package includes A to B type USB cable and software CD.
